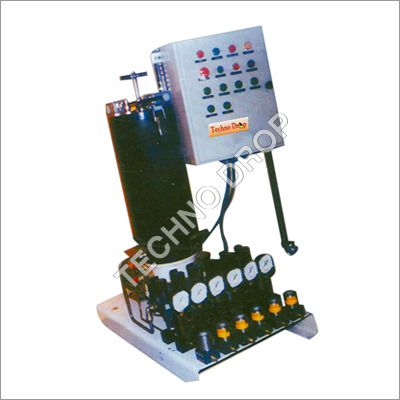

Multiline Radial Lubricator

Multiline Radial Lubricator
Multiline Radial Lubricator
Product Code : MRL-19
Brand Name : TECHNO DROP ENGINEERS
Product Description

 Multiline Radial Lubricator

With consistent and proficient efforts to maintain the norms of the industry, we are able to manufacture, supply and export Multiline Radial Lubricator. These products are equipped with multiple lines that ensure the proper lubrication of different types of machines. Our clients acknowledge these products for their error free performance and easy installation. Multiline Radial Lubricator is packed in special wrapping material in order to ascertain its damage free transportation at the clients' premises.

Other details:

We provide our clients a wide range of Multiline Radial Lubricator which is highly demanded in varied industries owing to their excellent performance, efficiency and longer working life. Manufactured using high grade raw materials and sophisticated production techniques, these are in confirmation to the established norms and guidelines of the industry. Offered in numerable specifications, these precision engineered Multiline Radial Lubricators can be availed by clients at cost effective rates.

Functioning

Multiline Radial Lubricator is a device to deliver the predetermine amount of the oils and grease from the different plunger at high pressure to lubrication point independently. Multiline Radial Lubricator is a signal pumping station having a number of the pumps element are actuate by a cam, which are rotated by the speed reduction drive coupled to an electric motor. The dose of the oils and grease are adjust  by pumping elements. The dose can be also be adjust by adjusting screw provided in each pump elements.  A max. of 38 pumps  elements can be fitted in to the housing which are  used to lubricating point independently. The capacity of the reservoirs are from 1.5 to 100kg. It is provided with a reflector plates, which are continous stirs the grease during the rotation of the cam. For filling grease in the reservoir, a port in the housing is provided.The system is ment for running continously. However these types of the lubricators run intermittently through controller.

Component of Multiline Radial Lubricator:

1. Reservoir.

2. Housing

3. Motor

4. Gear Box

5.  Coupling

6. Filter

7. Relief Valves

8. Stirrer

Options:

1. Pressure switch

2. Level switch

3. Progressive

4. Control Panel

5. Grease filling Pump

Technical date:

Reservoir capacity: 1.5 to 100 kg

No. of Pumping element: 1 to 38

Delivery pressure: 200kg/ cm.sq

Out put stoke: 0.5 cc to 0.25 cc

Application:

1. Road building machines

2. Cement plant

3. Paper Plant

4. Steel Mills

5. Vehicle Lubrications

6.Sugar machines

7. Rubber Industries

8.  Stone crusher

9. Hydro Turbine

10 Forging Hammer.
