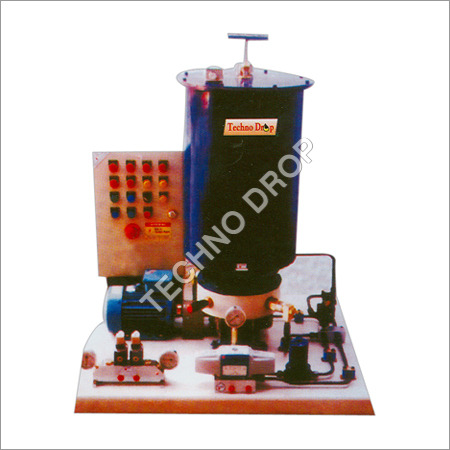

Dual Line Grease Lubrication System

Dual Line Grease Lubrication System
Dual Line Grease Lubrication System
Product Code : Dlgls-16
Brand Name : Techno Drop
Product Description

Dual Line Grease Lubrication System

We own a large and well-organized infrastructural unit that has enabled us to manufacture, supply and export Dual Line Lubrication System. These products are used for feeding oil or grease to different lubrication points in a machine. Equipped with two lines, these products work in an alternate pattern or manner that ensures their effective functioning. Packed in special damage free packaging material, Dual Line Lubrication System is delivered to the clients in a secure way.

Other details:

We are instrumental in offering our clients a distinctive assortment of Dual Line Lubrication System. These are manufactured in accordance with International norms and offered in varied specifications to cater to the requirements of our esteemed clients. Our production professionals use premium grade raw materials in the manufacturing unit to ensure sturdiness, dimensional accuracy, optimum performance and longer life. These Dual Line Lubrication System tools are available in market at cost effective prices.

Construction and Working:

Dual line grease / oil lubrication system are centralized lubrication system in which grease / oil is fed to lubrication points in the measured quality through does feeder from the common sources. In the system there are two main grease / oils line which works alternatively. The whole system can be comprise as :

1. Motorized grease pump station

2.  Inline filters

3. Dose filter

4. End pressure relay

5. Tubing and fittings

6. Electric control Panel

Motorized grease pump deliver the grease / oil at the high pressure to dose feeder through inline grease/ oil filter and after the farthest does feeder from the pumping stations and end relay are provided. The whole system are commanded by the control panel. The pumping station is connected through to point through filters, direction control values. dose feeder etc. When the pump start grease / oil will flow in one of the tow line through direction control valves to dose feeder and will lubricate the point by feeding set dose. Then pressure will rise and when it give signal to direction control valves of the pumping station and grease will  start flowing through the second line. Now one of the dose of the grease are discharge to lube point and again pressure will rise to cross the set point of the end pressure relay.  End relay will give signal to panel to stop pump. In this way one cycle will be completed.
